Public building

Protecting your buildings and public buildings against reinforcement corrosion

Residences
Balconies
Underground car parks
Hospitals
Swimming pools
Public buildings
Your reinforced and prestressed concrete structures age due to their reinforcement. As a result of carbonation, sea spray or chronic water ingress, corrosion in buildings and public access buildings progresses beneath the concrete surface. Ultimately, this threatens the safety of users, the continuity of service and the value of the property. BlueSpine cathodic protection tackles the problem at its source.

Your challenges — Real-life examples

Corrosion: a major concern for your buildings and public buildings

Risk to user safety

A hospital that can no longer admit patients, a condominium where residents cannot access their balconies, a swimming pool closed due to waterproofing failure: corrosion directly impacts the quality of life of users. And since conventional repairs do not last, construction sites repeat themselves, with their parade of scaffolding, visual and noise nuisances, not to mention their accumulated costs.

Disruption to the building’s operations

Partial closures, restricted access, recurring works: corrosion can disrupt building operations and user comfort. A sustainable treatment strategy limits interruptions and avoids a series of piecemeal repairs.

Deterioration of built heritage

A building is the primary asset of a condominium; a public facility, an investment to be amortized over several decades. A facade renovation restores aesthetic appearance but does not treat corrosion. It resumes around repaired areas in the years that follow and, cycle after cycle, your property loses considerable value.

Our response

BlueSpine cathodic protection for your buildings and public buildings

Stop corrosion without interrupting use

+
The BlueSpine  material is modular and can be adapted to the site. The installation is carried out segment by segment for a parking lot, facade by facade for a condominium, from the technical room or at night for a swimming pool. Everything is designed to facilitate installation, site inspection, and to limit the duration of operations. The oxidation of the reinforcements stops instantly. Concrete is depolluted over time by extraction of chlorides and re-alkalinization. The building remains in service and the comfort of users is preserved.

Ensuring repairs and refurbishments are long-lasting

+
Chaque installation industrielle appelle une solution sur mesure. Nos experts certifiés EN ISO 15257 dimensionnent la protection en fonction de la pathologie et du niveau d’agressivité du milieu, du galvanique au courant imposé, jusqu’aux ambiances chimiques chlorurées les plus sévères. Le courant est régulé en continu, zone par zone, pour garantir les critères de performance EN ISO 12696 sur toute la durée de service.

Preserving the value of our heritage over 50 years

+
A BlueSpine installation designed by our certified experts complies with international standards recognized by control authorities (EN ISO 12696 and EN ISO 15257 in Europe, AMPP SP0290 / SP0408 and CP1 to CP4 in North America). Designed to last up to 50 years, it breaks the cycle of successive repairs and the value of your property stops eroding over time.
Related products

Technologies that protect your buildings and public buildings

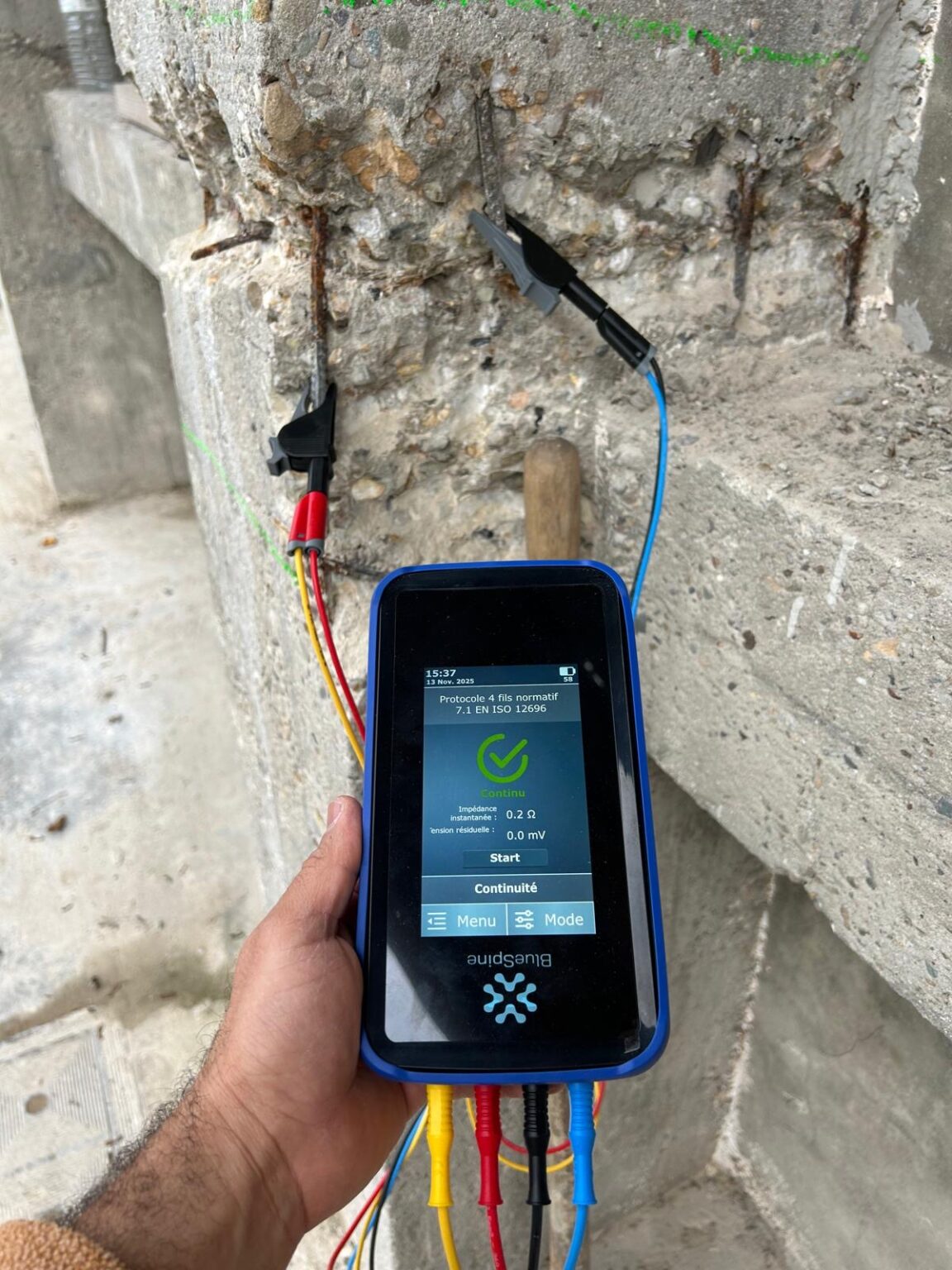

Q-Box · Quality control unit

The unit dedicated to commissioning and quality control of cathodic protection installations.
  • Multi-measurement unit for commissioning and quality control of the site
  • Automatic PAQ generation…
Read more

→ Discover the Q-Box

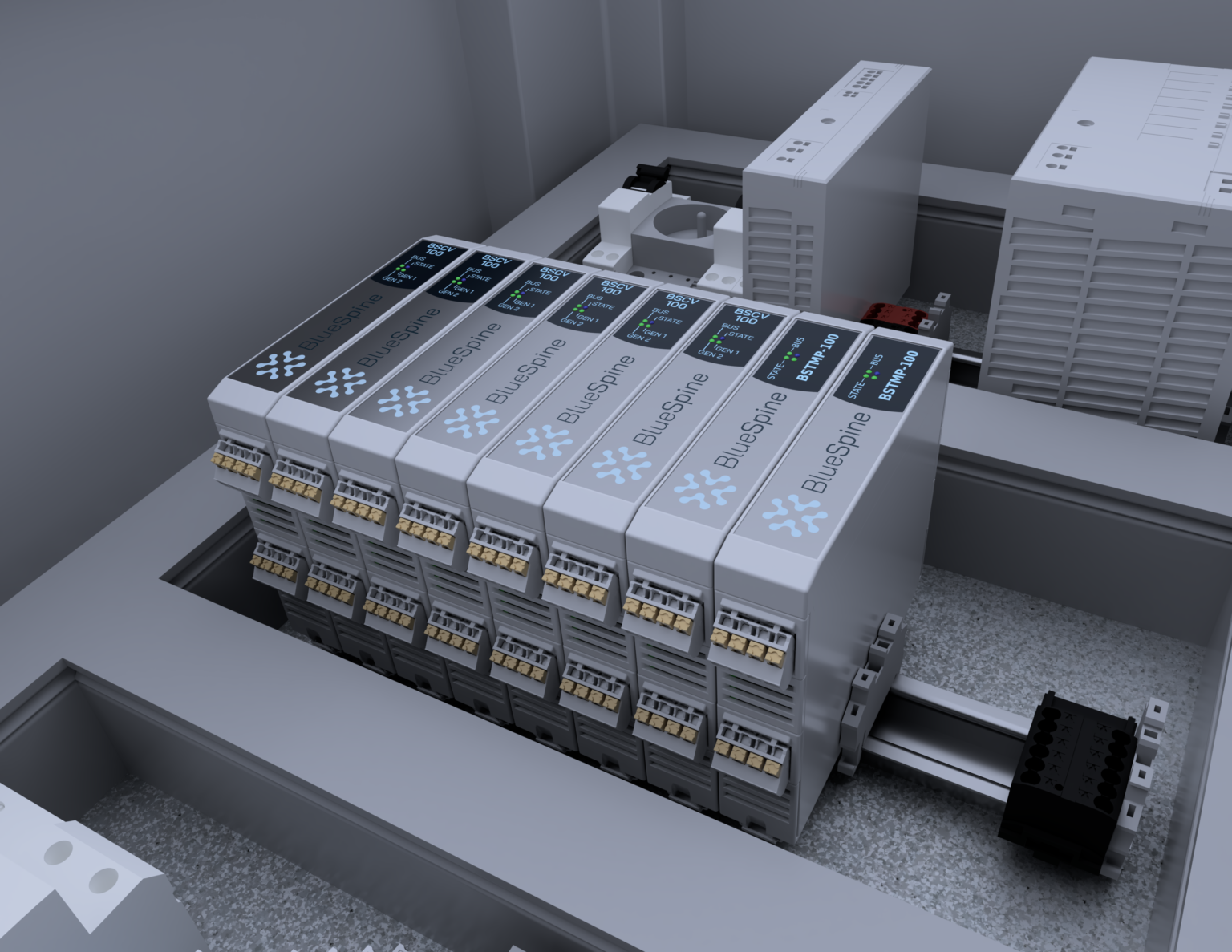

BSCP-100

A cathodic protection architecture designed for multi-zone buildings and complex structures.
  • Generation and regulation of protective direct current adjustable zone by zone
  • Modular architecture adapted to parking garages…
Read more

→ Discover the BSCP-100

Anodes suitable for the building industry

Anode technologies adapted to each structure type.

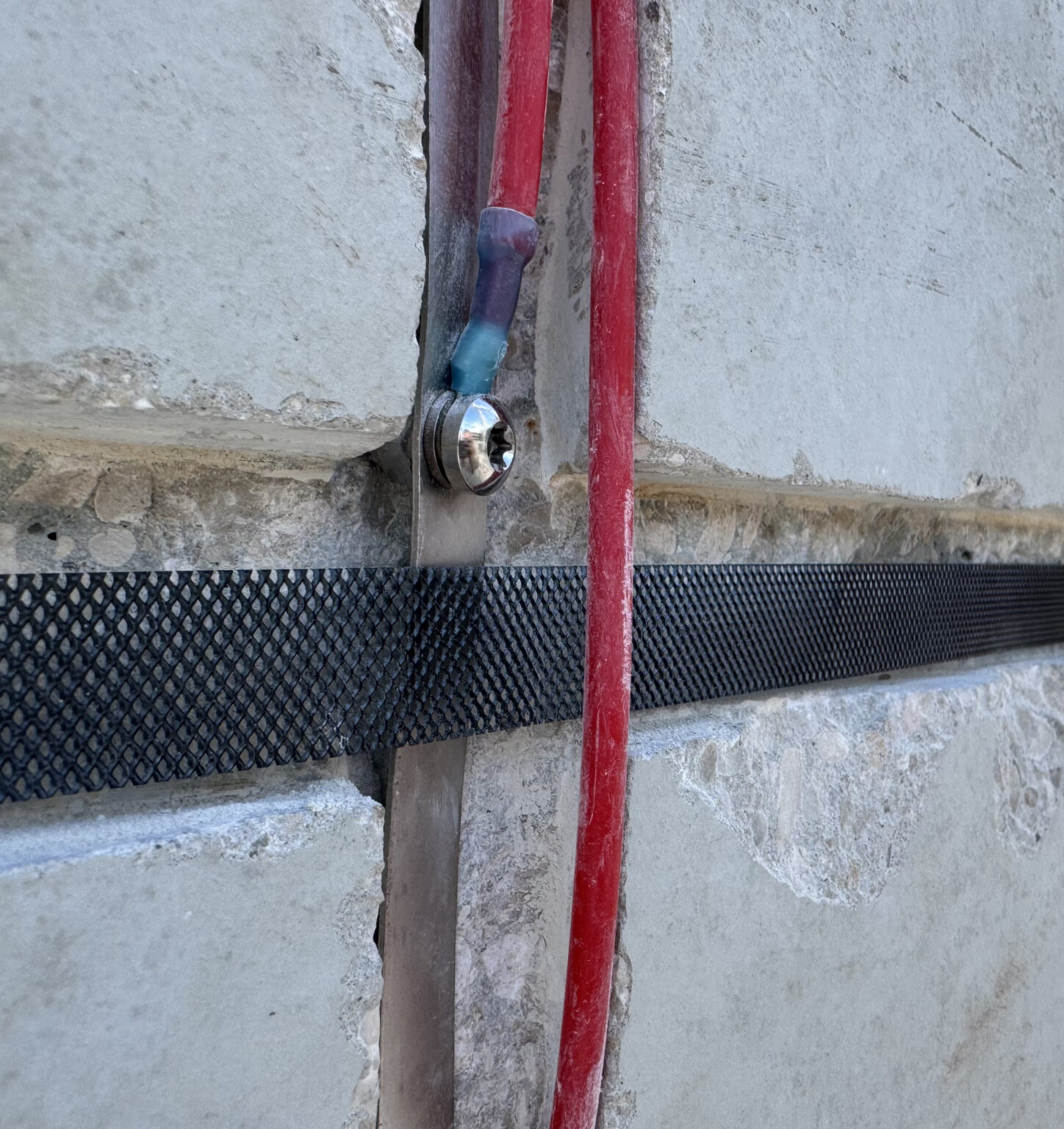

  • Carbon coating that protects the structure without damaging the material or adding extra weight, ideal for coastal facades
  • Custom pre-encapsulated anodes…
Read more

→ Discover anode technologies

Case studies

They chose BlueSpine to tackle corrosion in their buildings and public access buildings

  • Cathodic protection, Public building

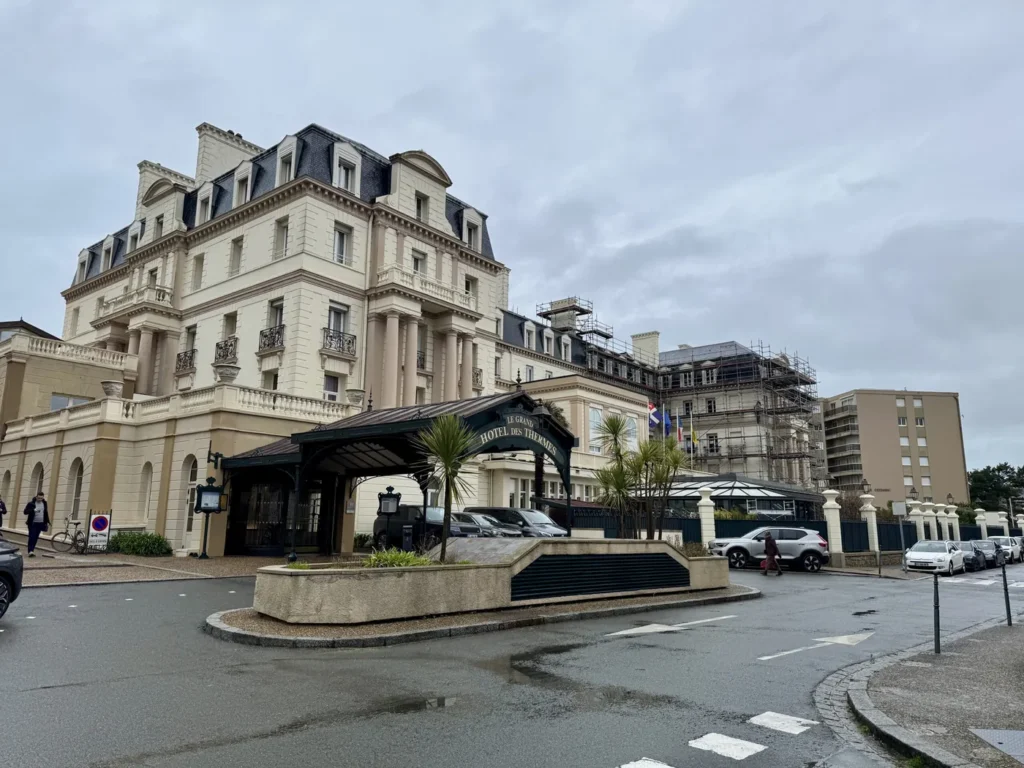

Saint-Malo Marine Spa – Saint-Malo, France

Key Figures

  • Exceptionally short project duration: construction work carried out during operational windows
  • Concrete treated in a chloride-rich marine environment

1 M € in construction costs, including 450 k€ for cathodic protection.

Discover

  • Cathodic protection, Public building

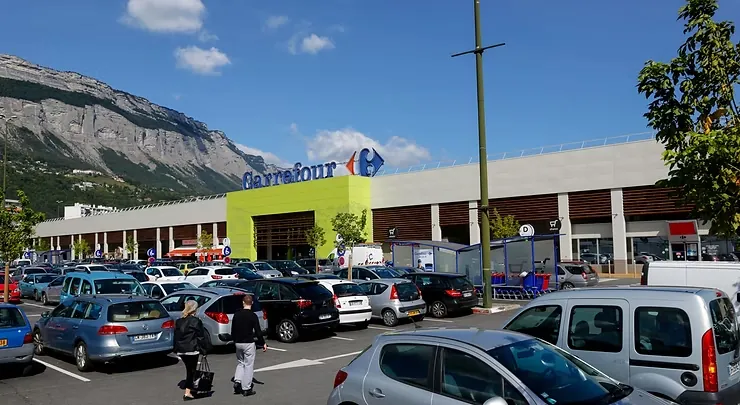

Carrefour Car Park – Meylan, France

Impressed current cathodic protection equipment

Key figures

  • Number of secured parking spaces
  • Very limited closure of the car park to customers during the works

€1.5M of works, including €500k of cathodic protection

Discover

What guides us

Does your building show signs of corrosion?

Diagnosis

Are there any concrete spalls, cracks or rust stains on your structures? BlueSpine diagnostic tools enable surveyors and engineering firms to assess the actual condition of the reinforcement before any defects become dangerous.


→ Request a diagnosis

Treatment

Planning to renovate your façade or repair waterproofing? Don’t forget to address corrosion as well. Façade renovation hides existing flaking but does not stop the corrosion of the reinforcement. BlueSpine supplies all the components required for cathodic protection tailored to the building: anodes, control units and monitoring systems, installed on site by a certified contractor.

→ Find out about corrosion treatment

Q&A

Your questions, our answers

Why is a facade renovation not enough to ensure the long-term maintenance of facades?
A facade refurbishment treats the surface (joints, render, cladding) without addressing the corrosion of the reinforcement, which continues deep within the structure. The repaired areas even create an electrochemical imbalance that accelerates corrosion in adjacent areas (induced anode effect). The result: a facade renovation that needs to be repeated every 5 to 10 years, each time involving scaffolding, visual disruption and noise. Cathodic protection acts directly on the corrosion mechanism to extend the service life of structures by up to 50 additional years.
For a car park or residential building, a forced-current system typically draws around 100 watts continuously, which is equivalent to a small domestic fridge. At the average electricity rate, this amounts to less than €100 per year. Galvanic protection systems, on the other hand, require no external power supply and therefore consume no electricity.

No. The currents used are very low, with a voltage of less than 50 V. The anodes are never exposed to the open air: they are either embedded in the concrete (Ti MMO strips, discrete anodes) or protected by a coating (carbon paint). Cathodic protection poses no risk of electrocution, generates no detectable electromagnetic fields and presents no contraindications for public buildings or residential properties.


Let’s talk about your building

Our BlueSpine experts will assist you in analysing corrosion and developing a tailored protection strategy to safeguard the safety, functionality and value of your assets.
